Deye 5kw Single Phase Hybrid Inverter

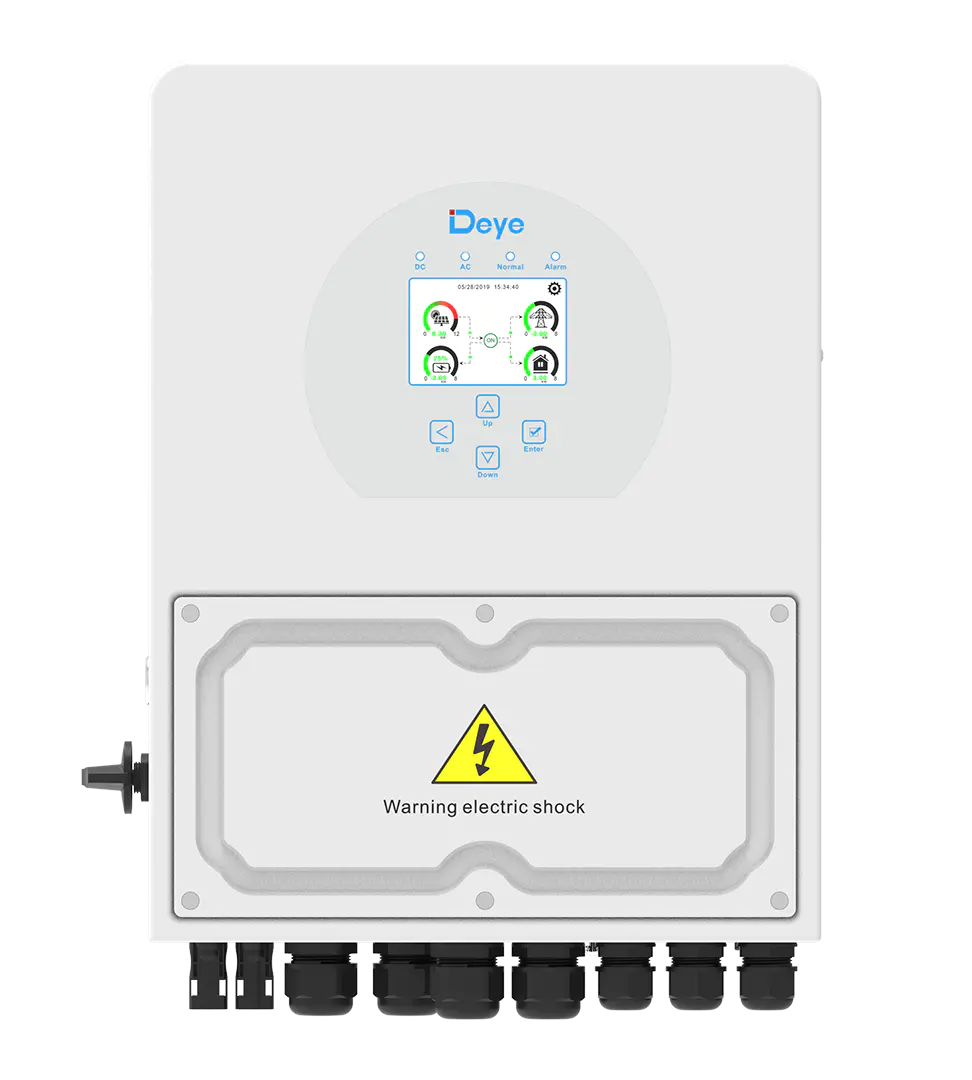

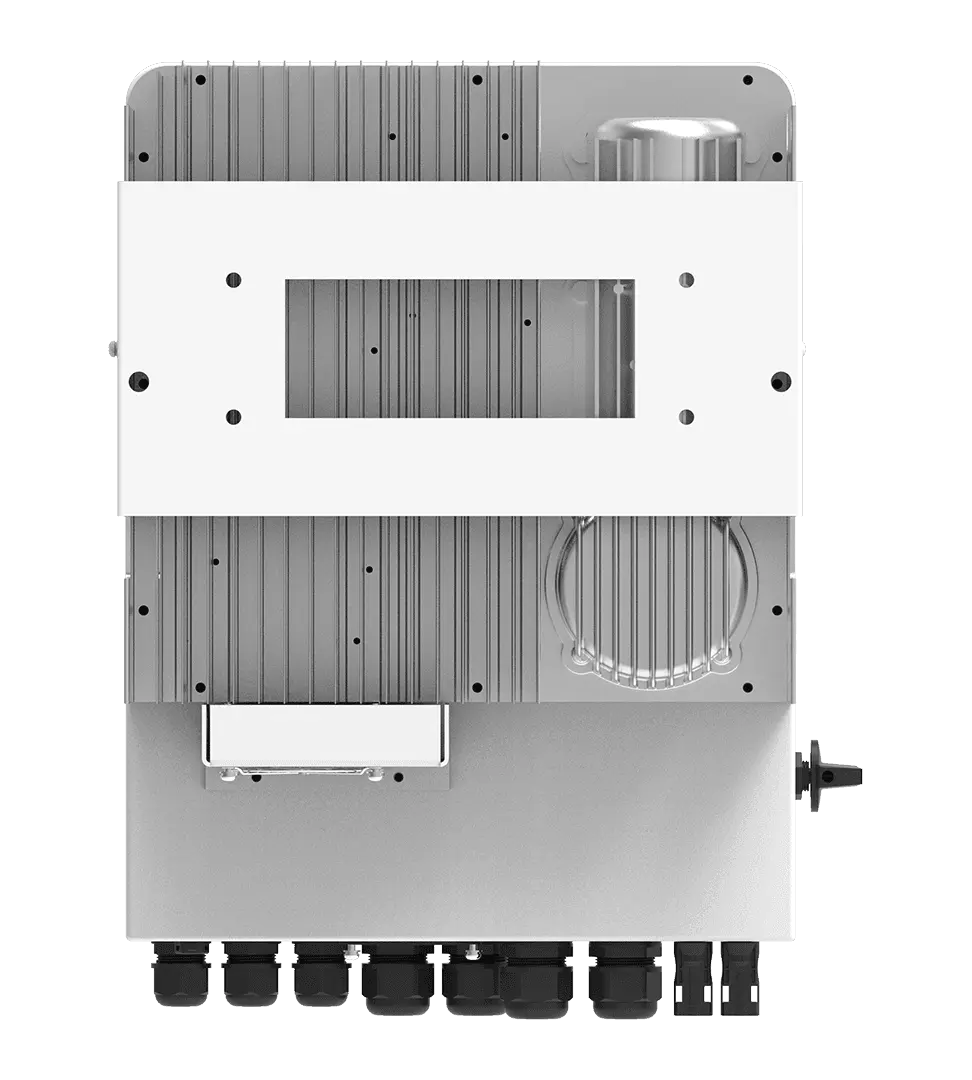

Deye SUN-5K-SG04LP1-EU – 5kW Single-Phase Low-Voltage Hybrid Inverter

Efficient. Intelligent. Built for Energy Independence.

Maximize your solar investment with the **Deye SUN-5K-SG04LP1-EU**, a high-efficiency, single-phase hybrid inverter engineered for residential solar-plus-storage systems. Delivering **5,000W of continuous AC output power** and supporting both **lead-acid and lithium-ion batteries**, this inverter is your all-in-one solution for grid-tied, off-grid, and backup power applications.

---

 🔋 Battery & Storage Flexibility
- **Battery voltage range**: 40–60V (optimized for low-voltage Li-ion or lead-acid systems)
- **Max charging/discharging current**: 120A
- **Self-adapting charging strategy** for lithium batteries via BMS communication
- **Single battery input** with robust protection and monitoring

---

 ☀️ Advanced Solar Integration
- **Max PV input power**: 8,000W | **Max PV access power**: 10,000W
- **Dual MPPT trackers** (2 strings) with wide **MPPT voltage range (150–425V)**
- **Start-up voltage**: 125V | **Max PV input voltage**: 500V
- **MPPT efficiency >99%** – harvest more energy, even in partial shading or low-light conditions

---

 ⚡ High-Performance AC Output
- **Rated AC output**: 5,000W | **Peak off-grid power**: up to **10,000W** (10 seconds)
- **Max AC output current**: 25A (continuous), with **40A passthrough capability** (grid to load)
- **Adjustable power factor**: 0.8 leading to 0.8 lagging
- **Ultra-low THDi**: <3% at nominal power for clean, stable electricity
- **Grid-compliant** with global standards: **G98/G99, VDE-AR-N 4105, CEI 0-21, EN 50549**, and more

---

 🛡️ Comprehensive Protection & Durability
- **IP65-rated enclosure** – suitable for indoor or outdoor installation
- **Integrated safety features**:
- Anti-islanding protection
- DC reverse polarity & AC overcurrent/overvoltage protection
- Short-circuit, thermal, and arc fault protection (optional)
- Insulation & residual current monitoring
- **Type II surge protection** on both AC and DC sides
- **Operating temperature**: **-40°C to +60°C** (with derating above 45°C)

---

 📱 Smart Monitoring & Connectivity
- Standard **RS485/RS232/CAN** interfaces
- Optional **Wi-Fi, Bluetooth, 4G, GPRS, or LAN** for real-time monitoring via Deye’s intuitive app
- Remote firmware updates and system diagnostics

---

 📏 Compact & Reliable Design
- **Dimensions**: 330 × 433 × 228 mm (W×H×D)
- **Weight**: 17 kg
- **Cooling**: Intelligent air cooling for quiet operation (<30 dB)
- **Warranty**: **5–10 years**, depending on installation location

---

Ideal for modern homes seeking resilience, savings, and sustainability, the Deye SUN-5K-SG04LP1-EU seamlessly unifies solar generation, battery storage, and grid interaction into one intelligent, future-ready system.

Power smarter. Store longer. Live independently.
