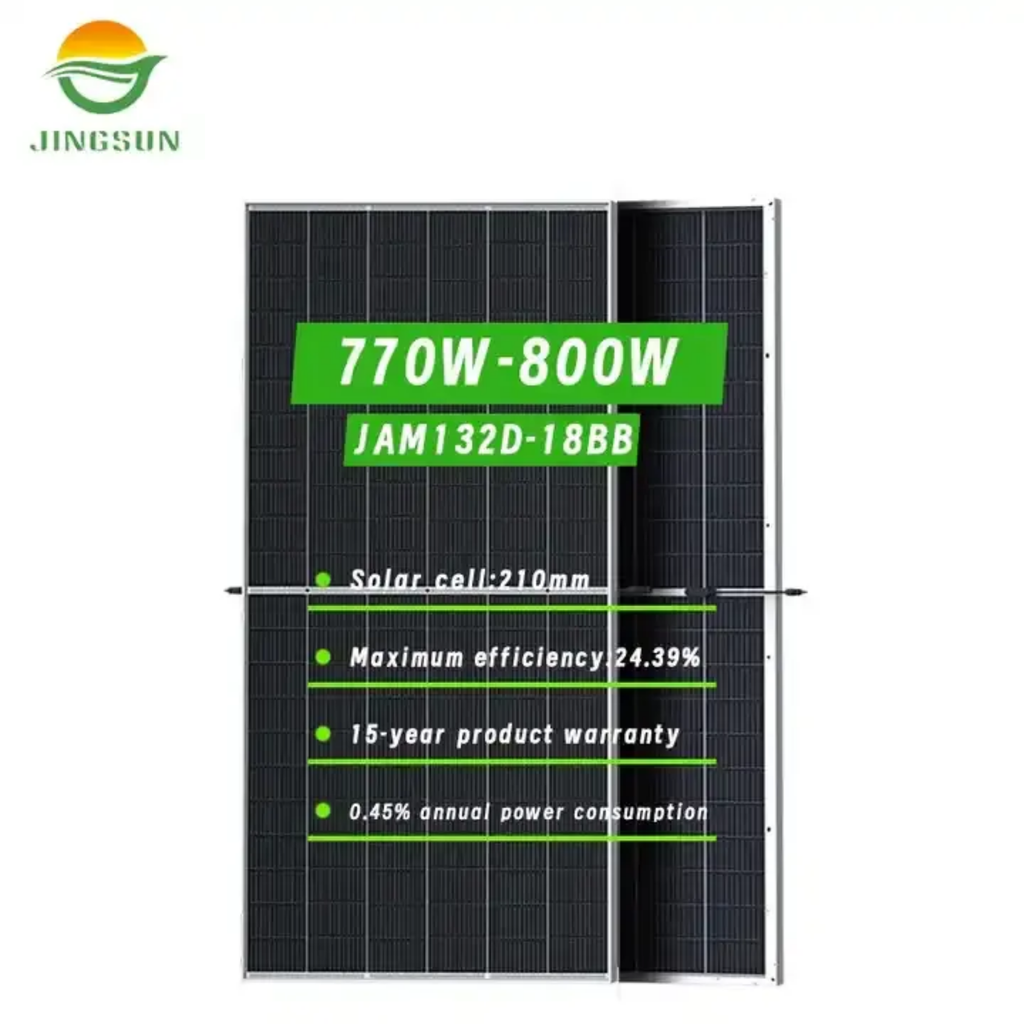

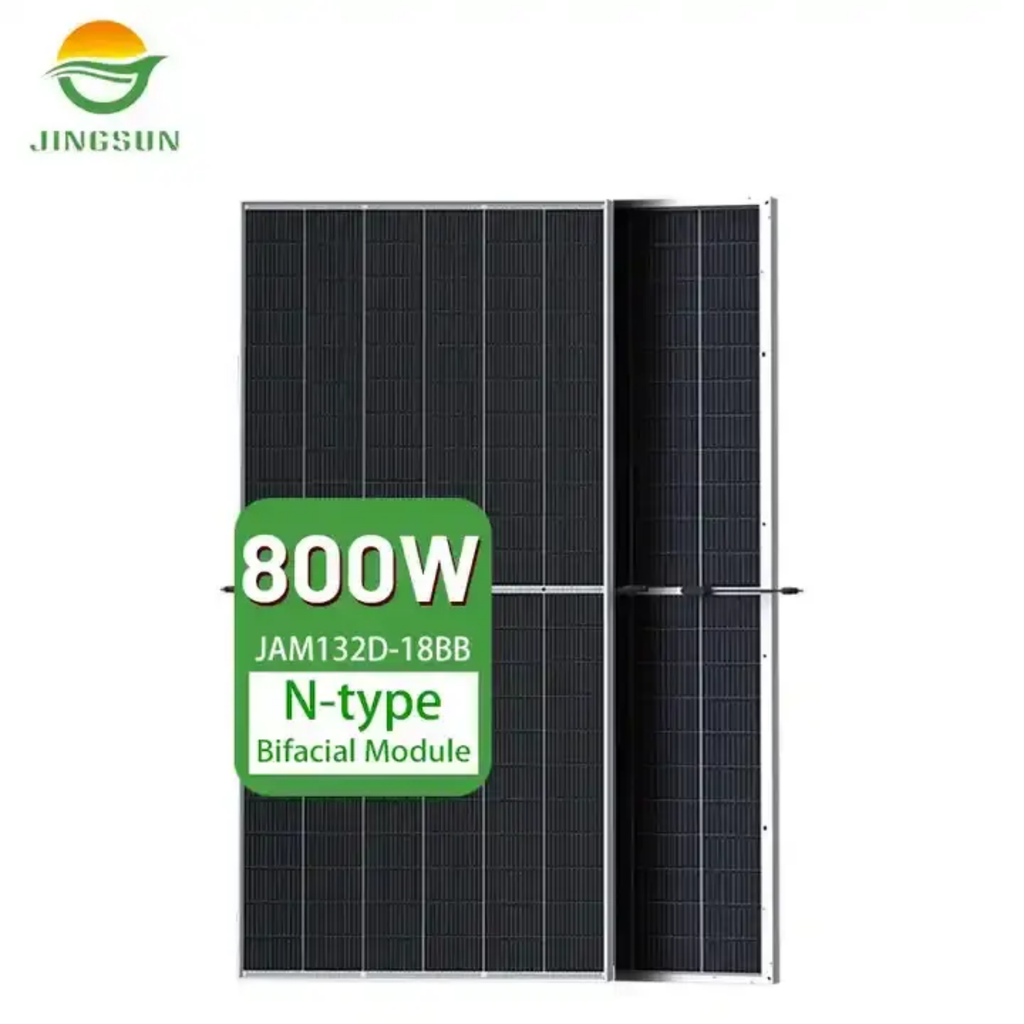

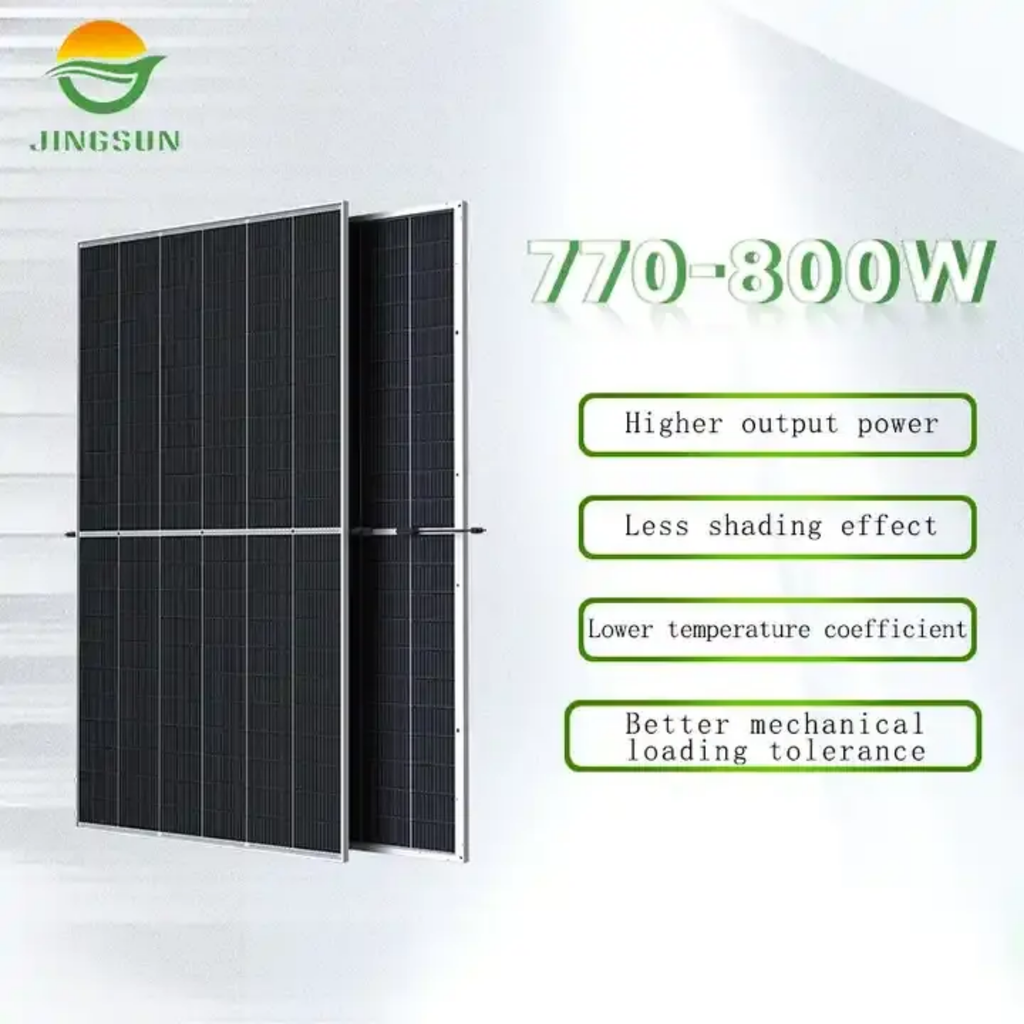

770–800 W bifacial HJT module

High-output N-type HJT bifacial solar panel delivering 770–800 W with up to 24.39% efficiency for utility-scale and large C&I rooftops, built on 210 mm half-cut cells for superior energy yield and reliability.

Key features
- 770–800 W power class with up to 24.39% module efficiency for maximum kWh per m² on constrained sites.
- N-type HJT half-cut, 18BB thin-slice cell tech with silver‑coated copper for lower resistance and higher current handling.
- Bifaciality up to 95% to harvest rear-side irradiance, boosting PR in high‑albedo sites and trackers.
- Low degradation with anti‑BO‑LID, anti‑LeTID and anti‑PID design for stable long-term output.
- Tough build: 2.0 mm AR-coated front glass, 2.0 mm rear glass, IP68 junction box, Class II protection, Class C fire rating.
- 15-year product warranty and 30-year performance warranty for bankable lifetime energy.

Electrical ratings (STC)
- JAM132D‑770: Pmax 770 W, Vmp 44.10 V, Imp 17.47 A, Voc 51.72 V, Isc 18.09 A, Eff 24.13%.
- JAM132D‑780: Pmax 780 W, Vmp 44.40 V, Imp 17.57 A, Voc 51.92 V, Isc 18.16 A, Eff 24.23% .
- JAM132D‑790: Pmax 790 W, Vmp 44.71 V, Imp 17.67 A, Voc 52.12 V, Isc 18.27 A, Eff 24.31% .
- JAM132D‑800: Pmax 800 W, Vmp 45.02 V, Imp 17.77 A, Voc 52.32 V, Isc 18.40 A, Eff 24.39% .

Bifacial gain (BSTC)
- Up to +10 W versus STC class (e.g., 800 W STC ≈ 810 W BSTC under 13.5% rear irradiation) for higher real‑world yield.
- Rear‑side energy capture improves ROI on light surfaces, rooftops with white membranes, and single‑axis trackers.

Mechanical
- Format: 132 half‑cut cells, module size approx. 2384×1303×35 mm for high packing density on racks.
- Weight: ~38.5 kg with anodized aluminum frame for rigidity and transport durability.
- Load ratings: 5400 Pa snow, 2400 Pa wind; M10/M12 compatible mounting holes and multiple grounding points.

System integration
- Max system voltage: 1500 V; series fuse rating: 35 A enabling long strings on utility plants.
- Cables: 4 mm², ~0.3 m length (customizable); MC4‑EVO2 compatible connectors for fast BOS integration.
- Temperature coefficients: Pmax −0.254%/°C, Voc −0.243%/°C, Isc +0.033%/°C for excellent hot‑climate performance.

Certifications
- IEC 61215, IEC 61730, ISO 9001/14001/45001, UL790/Fire Class C, UNI 9177, MCS, PVEL reliability credentials listed on datasheet.
- Class II protection and IP68 junction box ensure outdoor resilience over decades of operation.

Ideal for
- Utility‑scale solar farms, MW‑scale rooftops, and high‑albedo ground mounts seeking top kWh/kWp.
- EPCs optimizing LCOE with fewer modules, lower racking, wiring, and labor per MW installed.

What’s in the box
- JAM132D 770–800 W bifacial HJT module with factory MC4‑EVO2 compatible leads and installation manual reference on label.

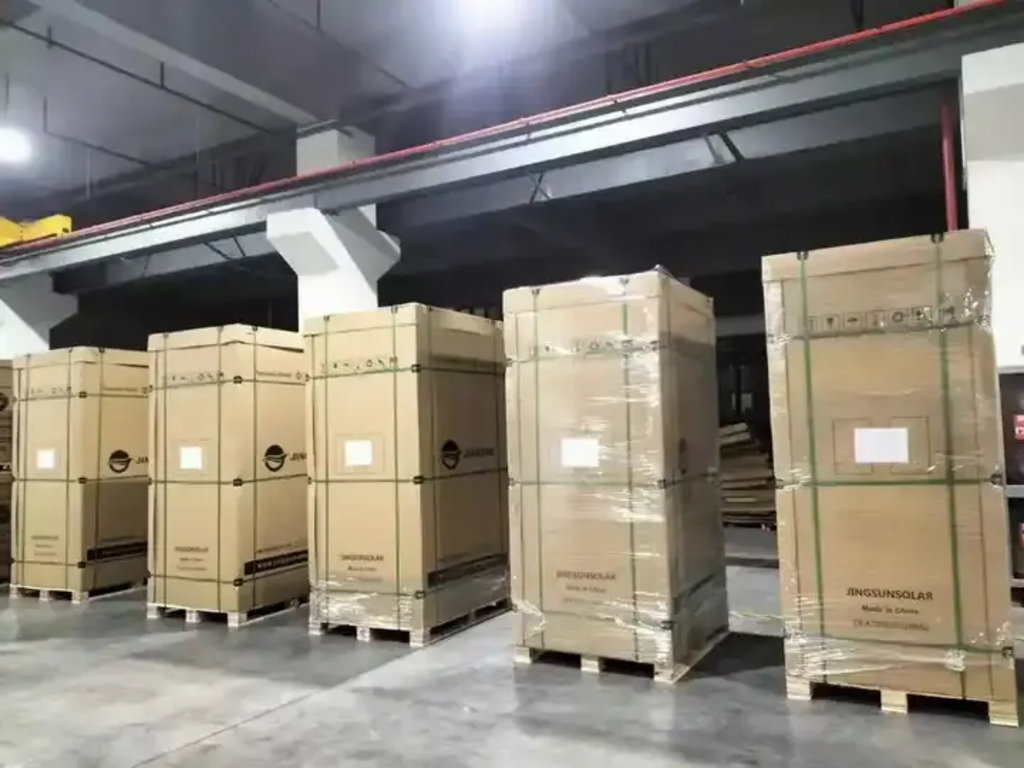

- Palletization: ~31–33 pcs/pallet; ~558–594 pcs/40HQ (varies by configuration) for logistics planning.

Quick specs
- Power: 770–800 W, Efficiency: up to 24.39%, Cells: N‑type HJT 210 mm, Bifacial: up to 95%.
- Dimensions: ~2384×1303×35 mm, Weight: ~38.5 kg, Glass: 2.0/2.0 mm, J-Box: IP68, Fuse: 35 A, Sys Voltage: 1500 V.
