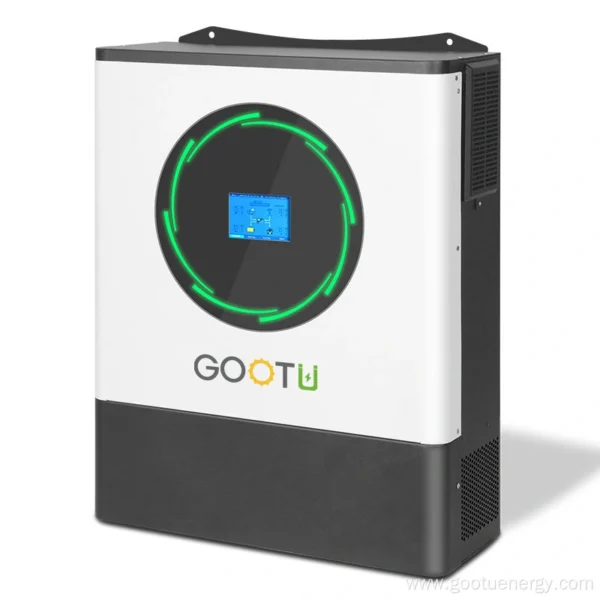

Model No.: JSK-H4880E120P Brand: GOOTU
Place Of Origin: China Output Type: Single
Types Of: Dc/Ac Inverters Rated Output Power: 8000W: Rated Input Voltage: 220/230 VAC
Rated Battery Input Voltage: 48 Volt: Max. PV Array Power: 8000W Max. PV Input Voltage: 450 VDC: MPPT Controller: 120A
Max. Efficiency: 96%: Parallel Function: Yes, max. 6pcs Product Size: 552*422*152: Net Weight: 18.5KGS
Peak Power: 8000VA: Battery Type: Lead Acid, VRLA, AGM, GEL
Main Features
1. 120A MPPT solar charger inside, max pv input 8kw+ (2/18A )
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 6 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and Off Grid Solar Inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display
10. Wide PV input range (Up to 450Vdc), support no battery working during the day time.
11.Smart battery management, reserved communication port for BMS.
|
Model No.
|
JSK-H4880E120P
|
|
Basical Information
|
|
|
Max. PV Input Power
|
8000W
|
|
Rated AC Output Power
|
8000W
|
|
Grid-Tie Operation
|
|
|
PV Input (DC)
|
|
|
Nominal DC Volt/Max DC Voltage
|
360VDC/450VDC
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
2PCS*18A MPPT Tracker (4000W*2)
|
|
AC Input (AC)
|
|
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
Max. AC Input Current
|
63A
|
|
Grid Output in Grid-Tie/Hybrid Operation (AC)
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
Nominal Output Current
|
34.8A
|
|
Power Factor
|
1
|
|
Max. Conversion Efficiency (DC/AC)
|
96%
|
|
Battery Mode Output (AC)
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac
|
|
Waveform
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
93%
|
|
Battery & Charger
|
|
|
Battery Type Supported
|
Lead Acid/VRLA/AGM/Deep Cycle/Gel/Flooded/Tubular/Lithium-Ion
|
|
Nominal Battery Voltage
|
48Vdc
|
|
Max Solar Charge Current
|
120A
|
|
Max AC Charge Current
|
120A
|
|
Max Total Charge Current
|
120A
|
|
General
|
|
|
Physical
|
|
|
Products Dimension,D X W X H (mm)
|
552*422*152
|
|
Product Net Weight(kgs)
|
18.4
|
|
Product Gross Weight(kgs)
|
20.5
|
|
Packing Dimension,D X W X H (mm)
|
700mm*510*mm*232mm,1PC/CTN
|
|
Parallel functions Optional
|
Yes, optional, MAX. 6pcs
|
|
Communication Interface
|
RS232,USB,WIFI,TOUCH LCD
|
|
Environment
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
Storage Temperature
|
-15℃ to 60℃
|
