Product Specifications
Model No.: JSR-H4835E80 Brand: GOOTU
Place Of Origin: China Output Type: Single
Types Of: Dc/Ac Inverters Rated Output Power: 3500W: Rated Input Voltage: 220/230 VAC
Rated Battery Input Voltage: 48 Volt: Max. PV Array Power: 4000W Max. PV Input Voltage: 500 VDC: MPPT Controller: 80A
Max. Efficiency: 95%: Parallel Function: Yes, max. 6pcs Product Size: 378*280*103mm: Net Weight: 7.4KGS
Peak Power: 6000VA: Battery Type: Sealed、FLood、GEL、LFP
Performance characteristics
- Load friendly: Stable sine wave AC output via SPWM modulation
- Supports a wide range of battery technology: GEL, AGM, Flooded, LFP, and program.
- Dual LFP battery activation method: PV&mains
- Uninterrupted power supply: simultaneous connection to utility grid/generator and PV
- Intelligent programming: the priority of the output from different energy sources can be set
- High energy efficiency: up to 99.9% MPPT capture efficiency

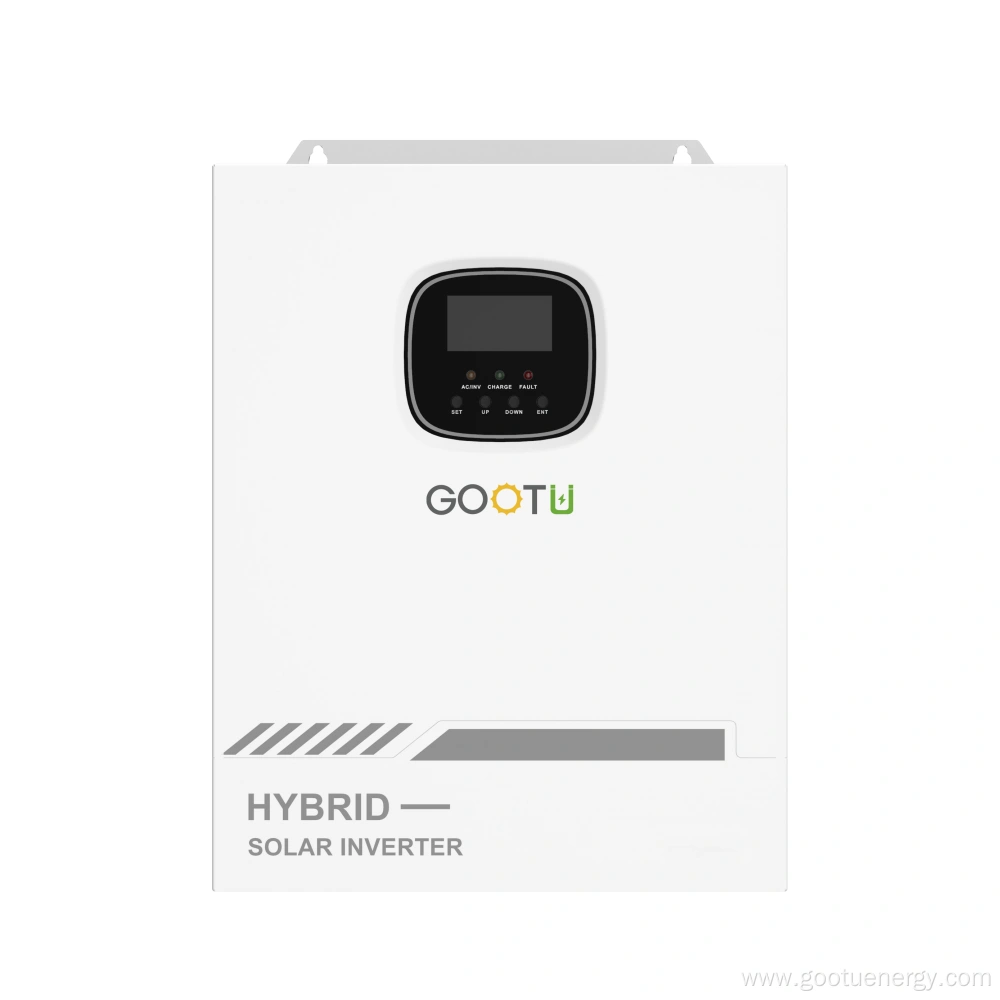

- Instant viewing of operation: the LCD panel displays data and settings ,while you can also be viewed using the app and webpage
- Power saving: power saving mode automatically reduces power consumption at zero-load

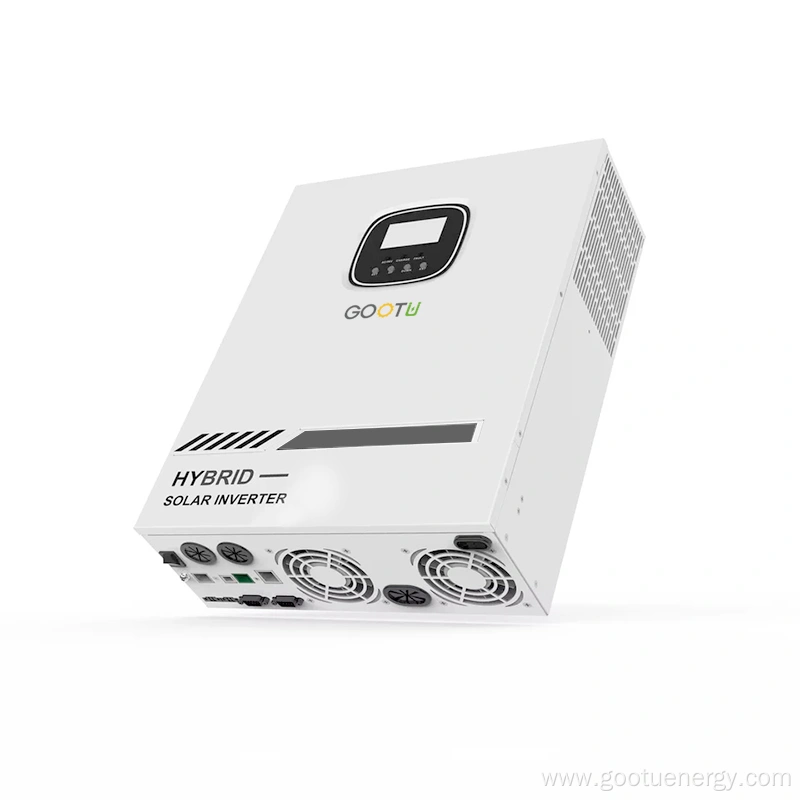

- Efficient heat dissipation: via intelligent adjustable speed fans
- Multiple safety protection functions: short circuit protection, overload protection, reverse polarity protection, and so on under-voltage and over-voltage protection and reverse polarity protection.
DATA SHEET
|
Models
|
JSR-H4835E80
|
|
AC mode
|
|
|
Rated input voltage
|
220/230Vac
|
|
Frequency
|
50Hz/ 60Hz (Auto detection)
|
|
Maximum bypass overload current
|
30A
|
|
Inverter mode
|
|
|
Output voltage waveform
|
Pure sine wave
|
|
Rated output power (VA)
|
3500
|
|
Rated output power (W)
|
3500
|
|
Power factor
|
1
|
|
Rated output voltage (Vac)
|
230Vac
|
|
Loaded motor capability
|
2HP
|
|
Bypass breaker specifications
|
30A
|
|
Rated battery input voltage
|
24V (Minimum starting voltage 22V)
|
|
AC charging
|
|
|
Battery type
|
Lead acid or lithium battery
|
|
Maximum charge current
|
80A
|
|
Charge voltage range
|
20Vdc~33Vdc ± 0.3Vdc
|
|
PV charging
|
|
|
Maximum PV open circuit voltage
|
500Vdc
|
|
PV operating voltage range
|
120-500Vdc
|
|
Maximum input power
|
4000W
|
|
PV charging current range (can be set)
|
0-80A
|
|
Communication interface
|
|
|
Communication interface
|
USB/RS485(WiFi/GPRS)/Dry node control
|
|
Humidity range
|
<60dB
|
